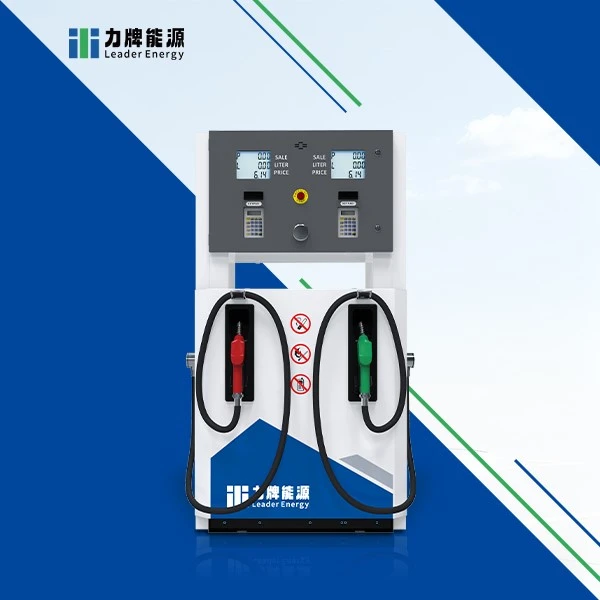

The 32Q series gas station fuel pump dispenser is mainly designed for mobile fuel station scenarios. This model typically comes with 1 to 4 nozzles, and the flow rate can be selected between 5-50L/min, 80L/min, and 120L/min. Customers can purchase fuel dispensers with different configurations according to their own needs.
Advantages And Features
Compact design, suitable for mobile scenarios

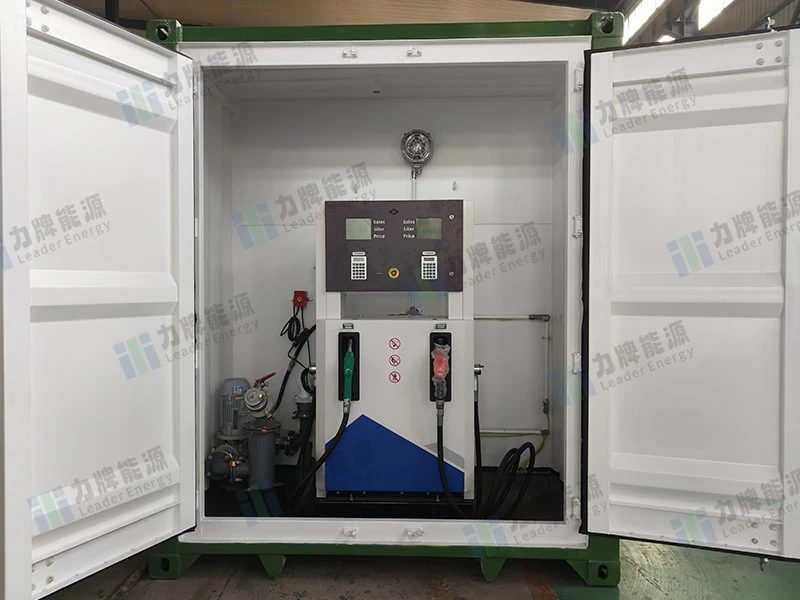

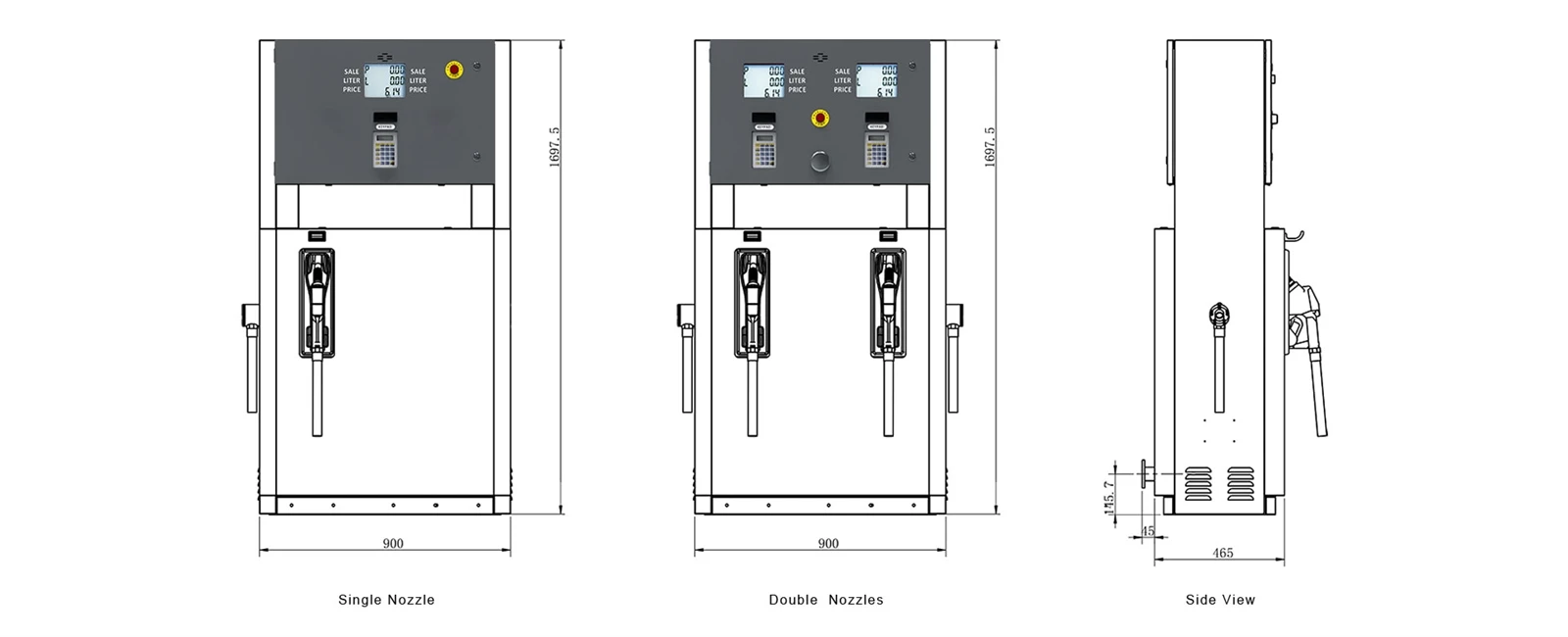

The 32Q series gas station fuel pump dispenser measures 1030*465*1700mm and has a volume of 0.81m³. This compact structure enables it to flexibly adapt to the space conditions of mobile fuel stations or container fuel stations, and can be quickly deployed in various mobile locations without geographical restrictions.
Safe and stable, comprehensive protection
The structure of the 32Q series gas station fuel pump dispenser uses cold-rolled steel plates. These steel plates undergo processes such as acid washing to ensure the durability of the machine, allowing it to operate smoothly and stably even in complex mobile operations. In terms of safety, the 32Q series fuel dispenser uses professional explosion-proof corrugated pipes at the oil inlet and outlet sections to ensure the stability and safety of the fuel dispenser during use.
High-quality components
The electronic components of the 32Q series gas station fuel pump undergo a 72-hour continuous aging durability test to ensure their normal operation. The motor of this fuel dispenser has explosion-proof certification and supports 220V and 380V, which can adapt to different voltage regions, reducing the impact of voltage instability on the fuel dispenser and improving the efficiency of the fuel station.
Product Specification
|
Accuracy |
±0.25% |
|
Ambient Temperature |
-25℃- 55℃ |
|
Imported Vacuum Degree |
≥54kPa |
|
Noise |
≤80dB(A) |
|
Relative Humidity |
≤95% |
|
Min. Measure |
5L |
|
Unit Price Range |
5 digits: 0-999.99 (Decimal point adjustable) |
|
Liter Range |
7 digits: 0-99999.99 |
|
Sale Range |
7 digits: 0-99999.99 |
|
Display |
775 system (optional 886 system) |
Configuration
Standard:

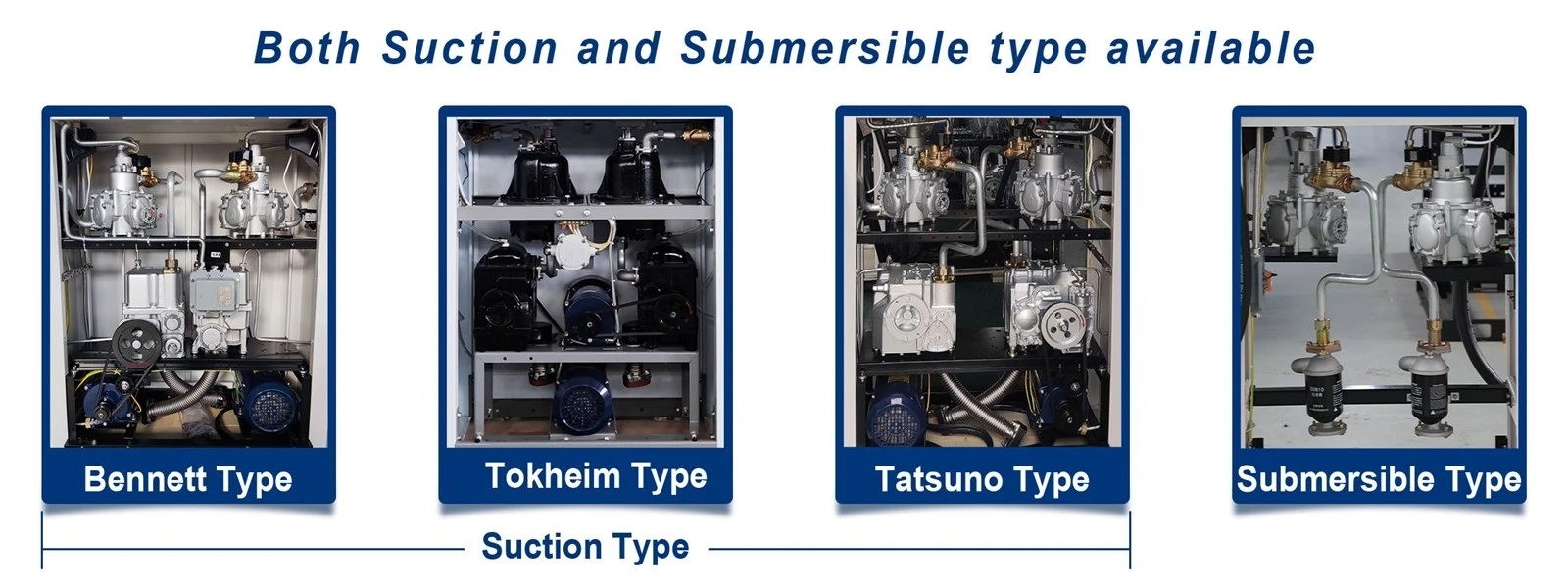

- Type: Suction or Submersible
- Flow Meter: Tatsuno type, Bennett type, Tokheim type
- Pump: Tatsuno type, Bennett type, Tokheim type, Submersible pump type
- Ex-proof Motor: AC 220V or 380V
- LCD Display System: 7-7-5 or 8-8-6
- Flow Rate: 50L/min, 80L/min or more heavy duty
Optional:
- Built-in receipt printer
- Customize logo and painting color
- RFID card reader
- Metal keypad

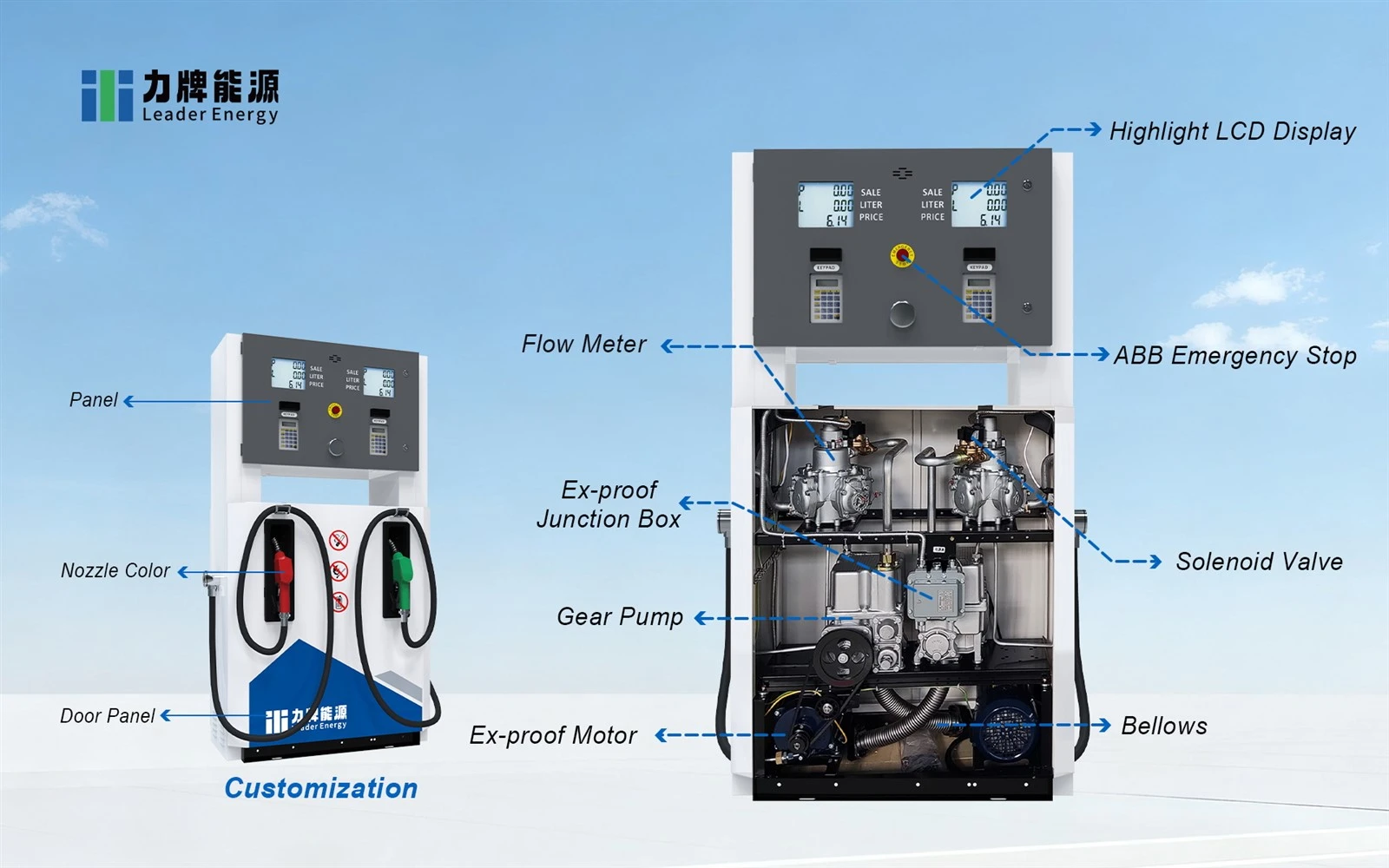

Pump & Meter
Accessories Introduction
Leader Energy Parts for Long-Lasting Performance. Our components are engineered for durability and precise integration, ensuring your system maintains its original high performance year after year.

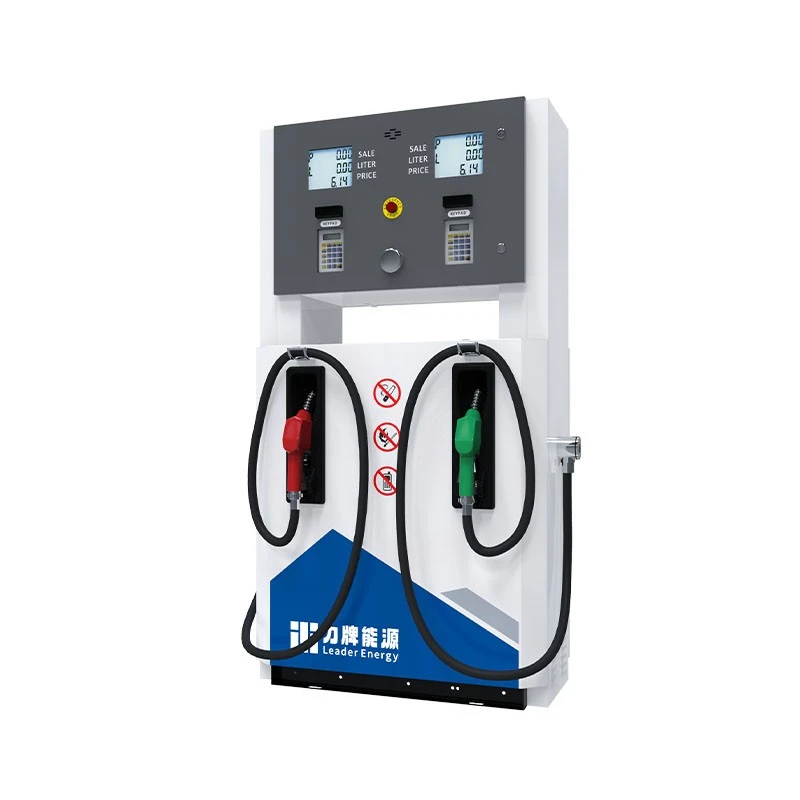

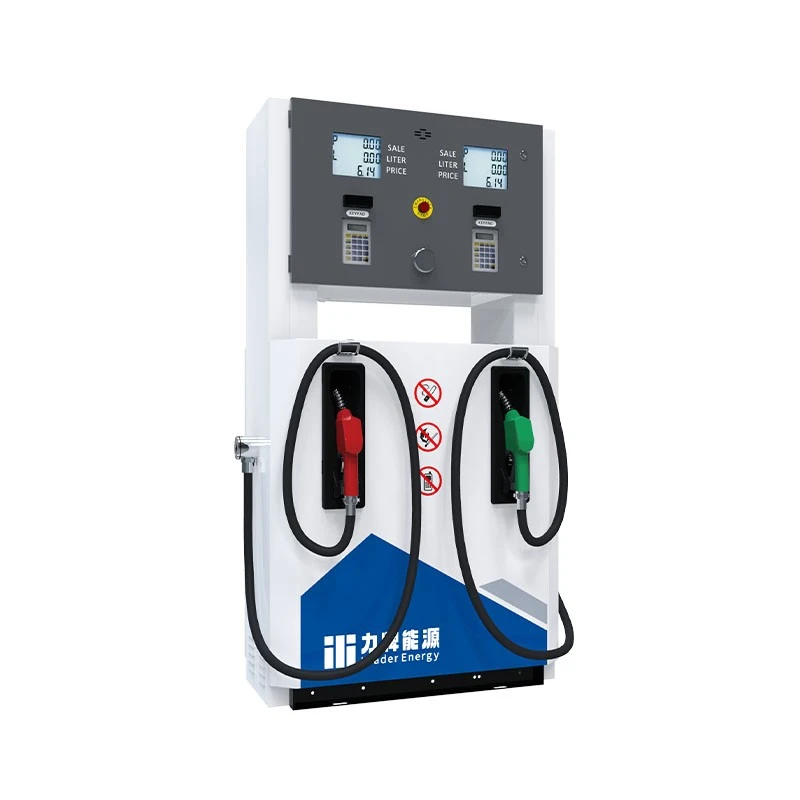

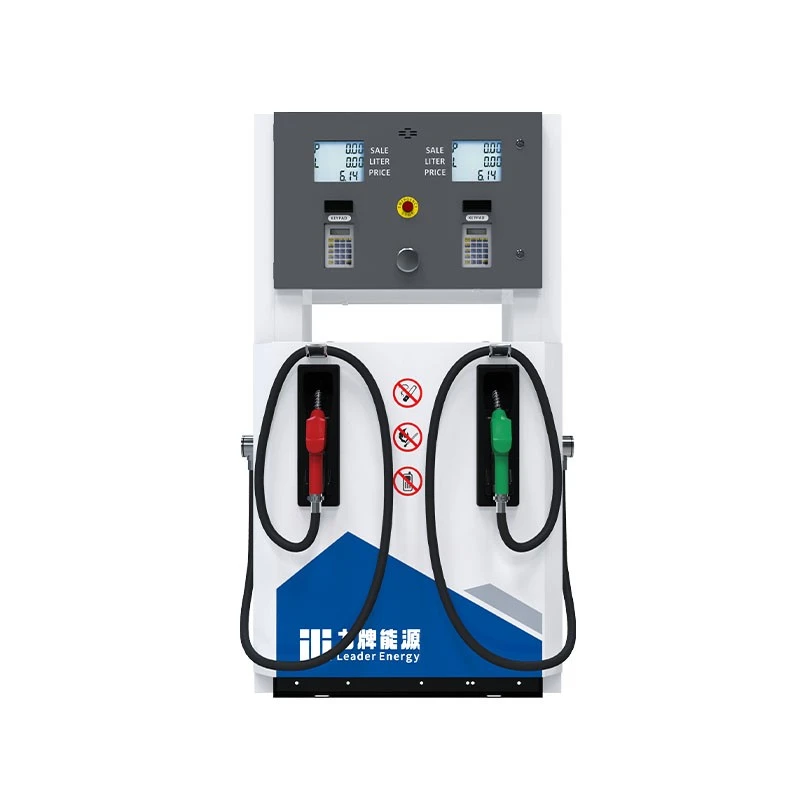

Product Actual Photos
Case
Below are some of our projects in regions such as Africa and Asia, which have received positive feedback.
Customers And Exhibitions
Many customers visit our factory and purchase large quantities of fuel dispensers from us for resale.
Delivery & Package
To ensure the machines arrive in good condition, we typically pack them in wooden crates and ship them by sea.
Certificate
FAQ
Q: How can I obtain the products? What' s the shipping method?
A: Usually we will select the most suitable logistics method based on customer import situation, and we have cooperative professional logistics companies for shipping.
Q: What is your production time?
A: It depends on the order quantity and the season. Usually we can ship within 15-20 days, please consult our sales manager for exact time.
Q: What is the packaging of fuel dispenser?
A: Usually we use wooden case for fuel dispenser packaging to ensure the safety of the goods during sea transportation.
Q: Can I get samples before placing a bulk order to check the quality?
A: Yes, no problem. Welcome place a sample order to check our quality.
