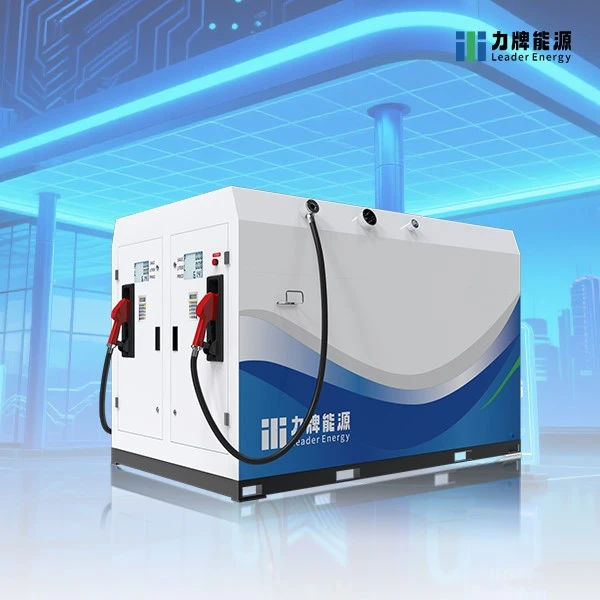

Mini Fuel Station

The LEADER ENERGY single mini fuel station is a portable, cost-effective and easily movable gas station equipment. It can operate stably in various environments ranging from -35℃ to +55℃. This gas station equipment offers multiple capacity options such as 3000 liters, 5000 liters, and 6000 liters, and can be customized in terms of capacity, number of fuel pumps and appearance to create its own brand or corporate image.

Portable and easy to use:

This mini fuel station is not restricted by the site. The entire equipment does not require a foundation to be poured. When it is necessary to move to a new area, it can be transported using a crane or forklift. The debugging and commissioning can be completed within 2-4 hours and it can be put into use immediately. The placement points can be changed according to different needs such as fleets, construction sites, and mining areas.

Flexible configuration:

This mini fuel station can be equipped with various fuel dispensers with flow rates of 50L/min, 80L/min and 120L/min, which can meet the needs of different scenarios and enhance work efficiency.

• Accuracy: ±0.3%
• Repeating Accuracy: ≤0.15%
• Flow range: 5-50L/min
• Noise: ≤80dB(A)
• IP Grade: IP54
• Humidity: s95%
• Ambient Temperature: -25℃~+55℃
• Atmospheric Pressure: 0-999.99
• Single range: 0-99999.99
• Electrostatic resistance value: 1×103~×106Q/m
• Pressure resistance: fuel tank under 0.002Mpa, fuel pipe under 0.5Mpa no leakage
• Power(optional): DC24V+10%, AC110V+10%, AC220V+10%

This mini gas station has a capacity of 1,000–6,000 liters, and a single unit can dispense up to three different types of fuel.

Power: AC220V, 50Hz and 750w

Hose length: 4 meters
Nozzle：1-3 nozzles

Flow rate: 5-50L/min

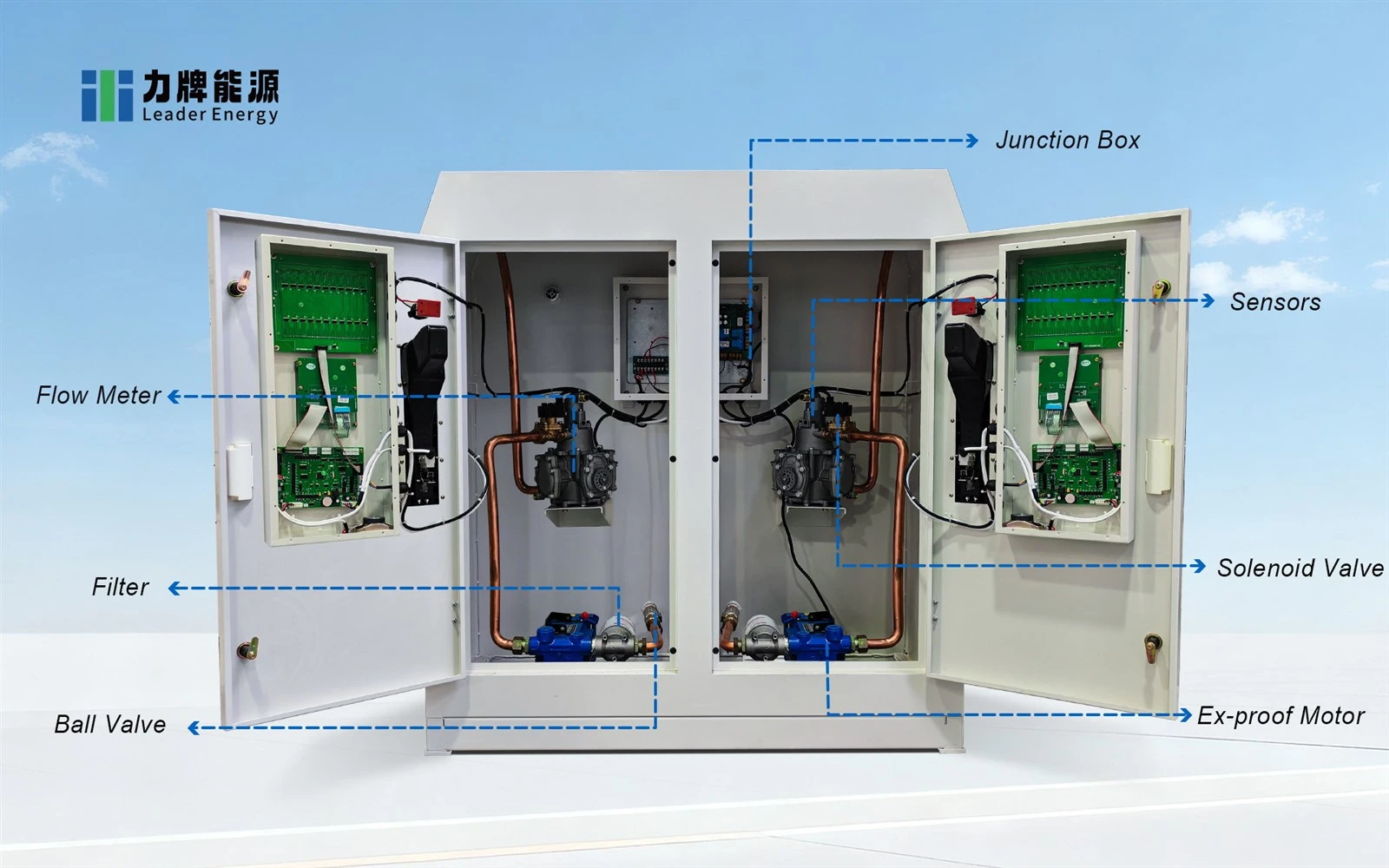

With emergency stop button

With breathing valve

With Ex-proof motor

With ball valve

We have a wide range of certifications, and our products are typically used in regions such as Africa and Southeast Asia.
