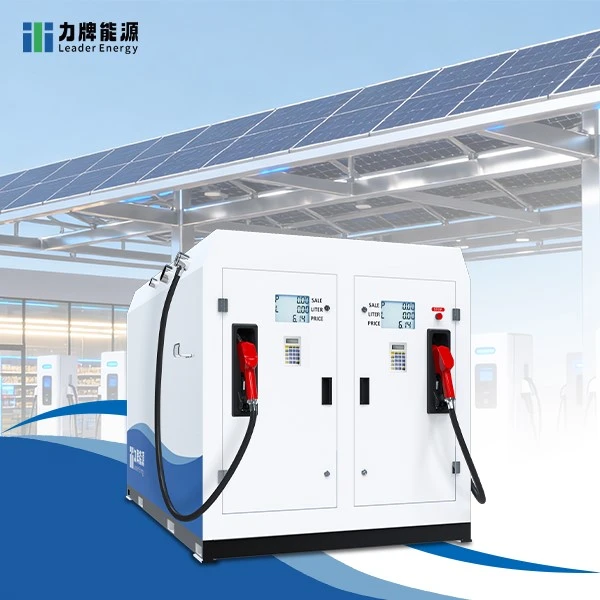

Mini Skid Fuel Station

Our compact mini skid fuel station is a portable, space-saving and precise device specifically designed for on-site fuel storage and refueling. This compact mobile fuel station has advantages in terms of convenience and durability. It can be equipped with different capacities and can be quickly moved, and is commonly used in enterprise gas stations, construction sites and remote areas.

Flexible scene adaptability:

This mini skid fuel station has a capacity option ranging from 1000 to 6000 liters or can be customized. It is equipped with 1/2/3 compartments and is capable of refueling gasoline, diesel, and other fuels to meet the needs of various fueling scenarios.

Stable, safe and reliable:

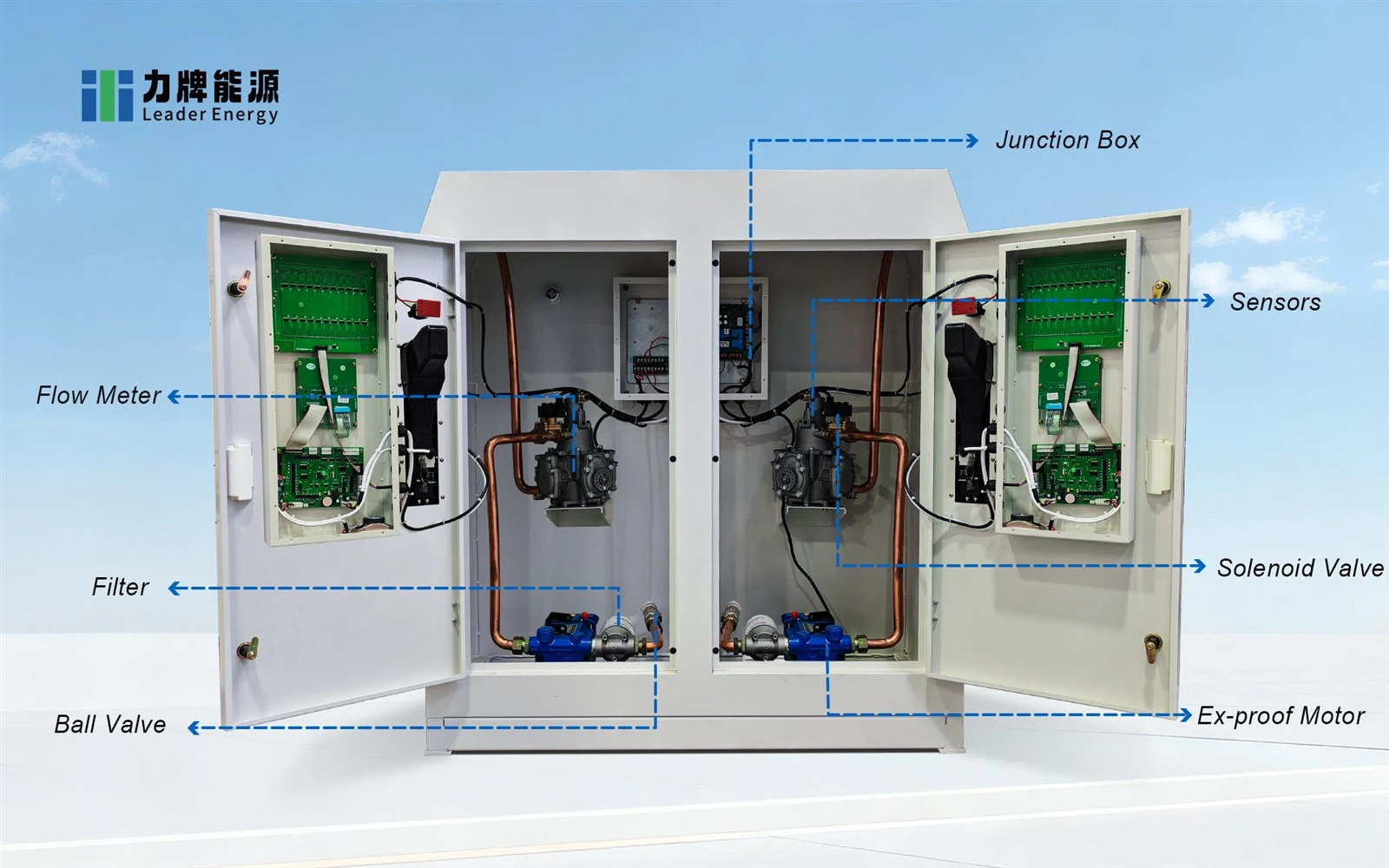

The body of this mini skid fuel station is made of high-strength cold-rolled steel, which is stable and corrosion-resistant, thereby extending the service life of the equipment. Inside the body, there are components such as an automatic fuel tank level monitoring system, leak detection and static electricity grounding alarm devices, ensuring safety during use.

• Accuracy: ±0.3%
• Repeating Accuracy: ≤0.15%
• Flow range: 5-50L/min
• Noise: ≤80dB(A)
• IP Grade: IP54
• Humidity: s95%
• Ambient Temperature: -25℃~+55℃
• Atmospheric Pressure: 0-999.99
• Single range: 0-99999.99
• Electrostatic resistance value: 1×103~×106Q/m
• Pressure resistance: fuel tank under 0.002Mpa, fuel pipe under 0.5Mpa no leakage
• Power(optional): DC24V+10%, AC110V+10%, AC220V+10%

Power: AC220V, 50Hz and 750w

Hose length: 4 meters

Flow rate: 5-50L/min

With emergency stop button

With breathing valve

With Ex-proof motor

With ball valve

We welcome everyone to visit our LEADER ENERGY factory in China.

They are usually packed in wooden crates and shipped by sea to ensure that the goods can be delivered on time.

We have certifications from the vast majority of countries, including CE, OIML, ISO, and EAC.
