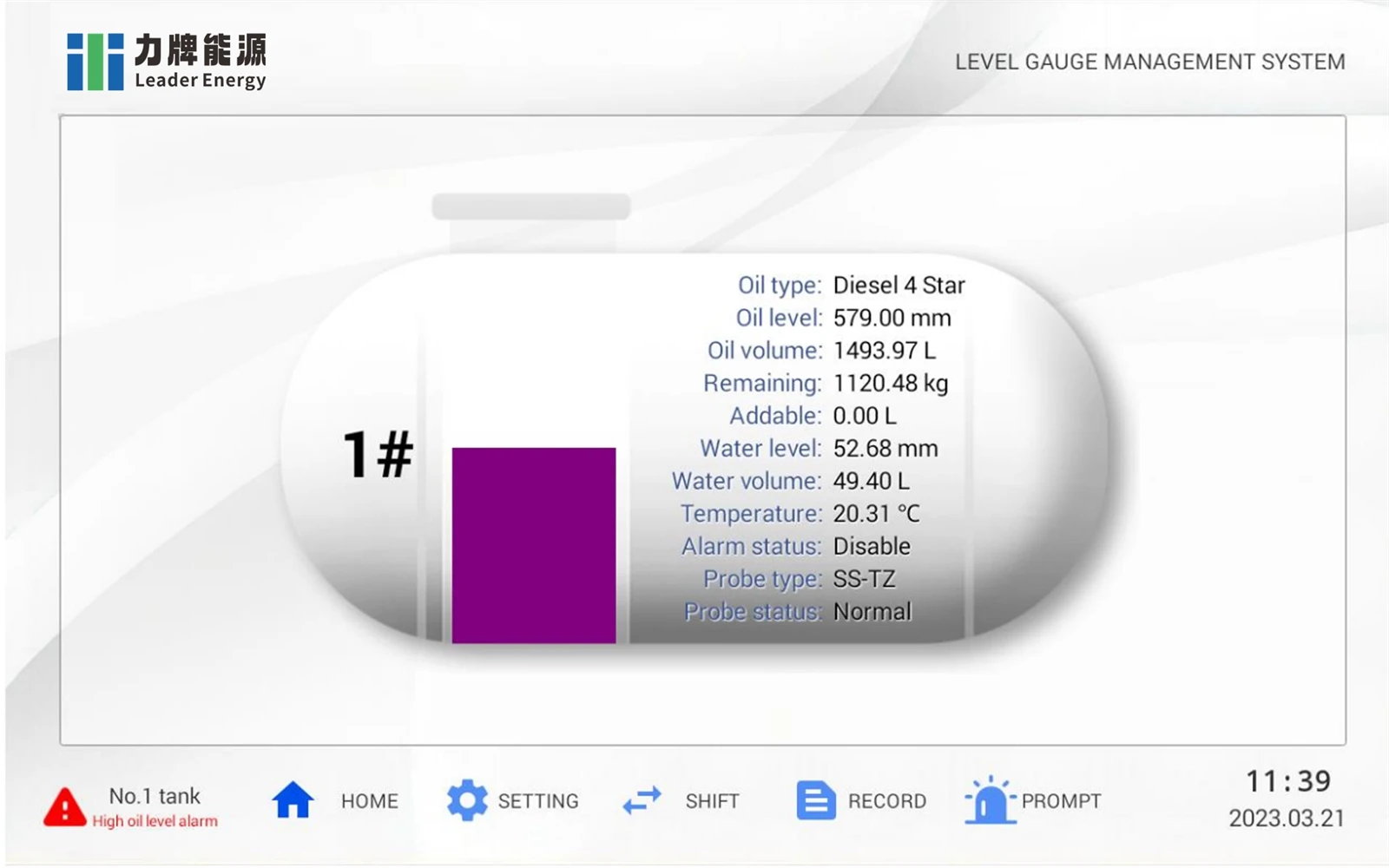

Main Interface
Advantages And Features
Precise Measurement and Real-time Calibration
The ATG tank monitor of LEADER ENERGY uses signal filtering technology inside. This technology, combined with high-quality ultrasonic and radar sensors, can effectively block electromagnetic noise and mechanical vibrations to achieve millimeter-level accuracy. The oil tank monitoring system is equipped with a compensation system that can automatically adjust for temperature and pressure changes, ensuring reliable data in any conditions.
Pump Parameter
- Measuring range: 500mm～6000mm
- Output mode: RS-485 Maximum communication distance 1200 m
- Power supply: 24VDC
- Product power consumption: ≤ 60mA
- Operating temperature: -30℃～+60℃
- Measurement accuracy: ±0.5mm.
- Repeat accuracy: ±0.2mm
- Oil level resolution: 0.01mm
- Water level resolution: 0.01mm
- Temperature measurement points: 5
- Temperature sensor resolution: 0.0625°C
- Upper blind spot: 60mm
- Lower blind spot: 50mm
- Explosion-proof mark: Ex ia IIAT5 Ga
- Associated equipment: Zener type safety barrier
- Suitable media: Gasoline, paraffin, diesel, light oil, heavy oil, methanol, toluene, ethanol, acetic acid, ethyl ester and other liquids.
- Communication address: 2 digits, e.g. 01, 99.
- Protection class: IP67
Customers And Exhibitions
Warmly welcome customers from all over the world to visit Leader Energy factory in China
FAQ
Q: How can I get the quotation?
A: All you need to do is to submit your requirements and contact information. Our professional sales manager will contact you immediately to discuss more details.
Q: How can I obtain the products? What' s the shipping method?
A: Usually we will select the most suitable logistics method based on customer import situation, and we have cooperative professional logistics companies for shipping.
Q: What is your production time?
A: It depends on the order quantity and the season. Usually we can ship within 15-20 days, please consult our sales manager for exact time
