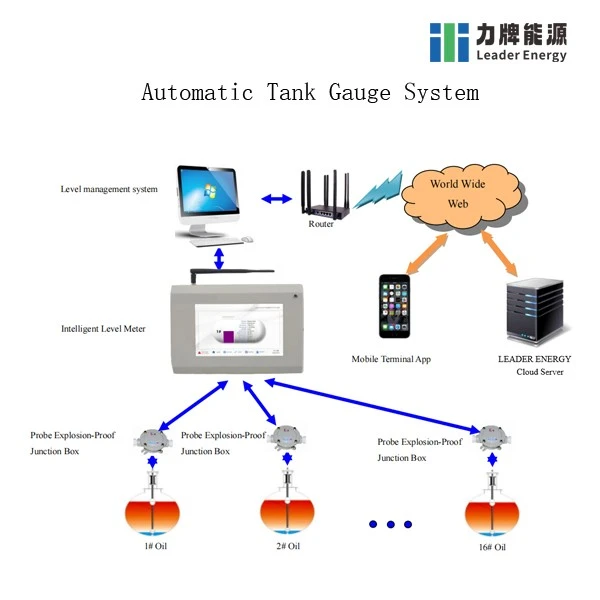

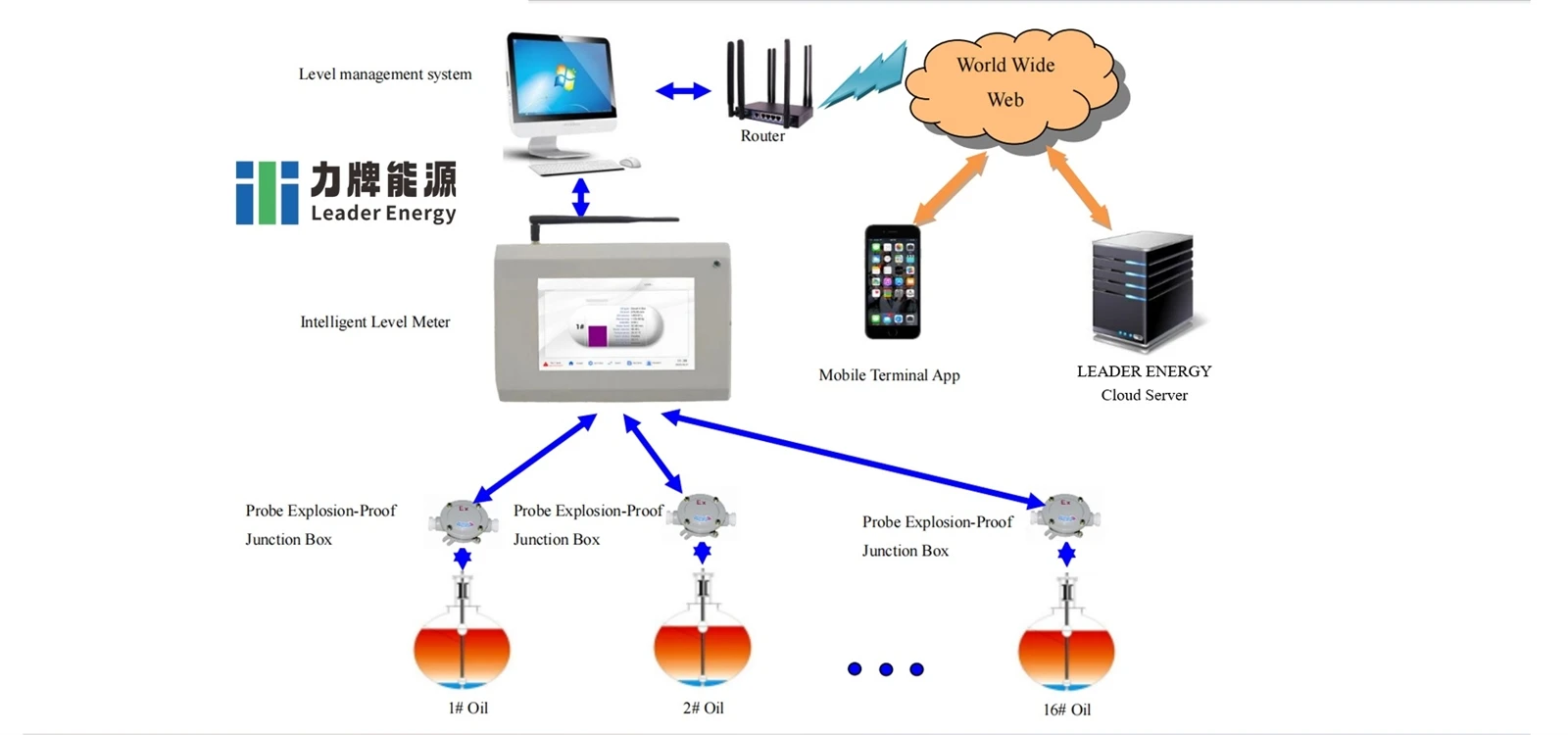

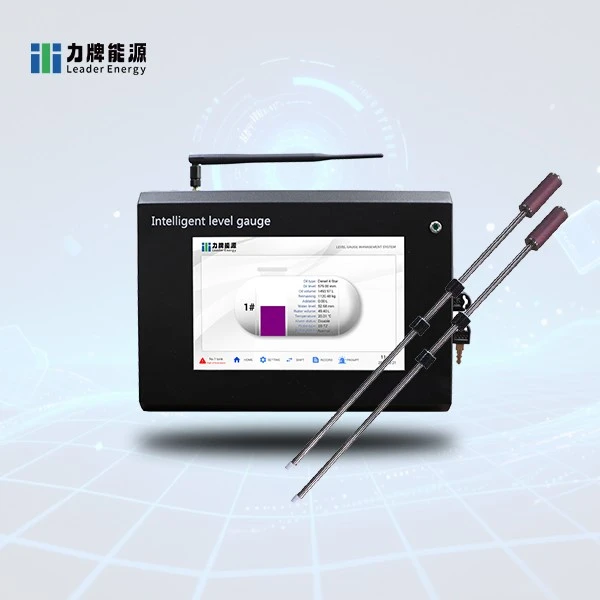

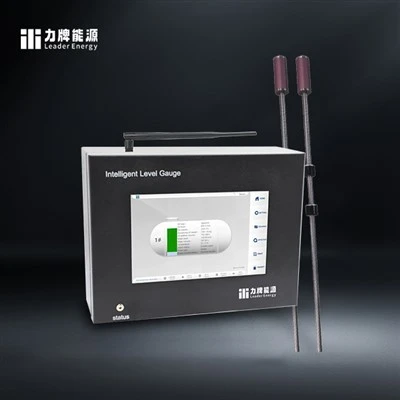

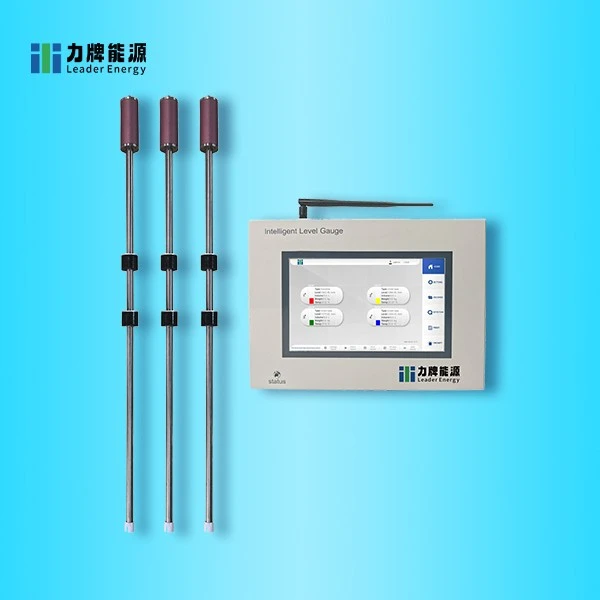

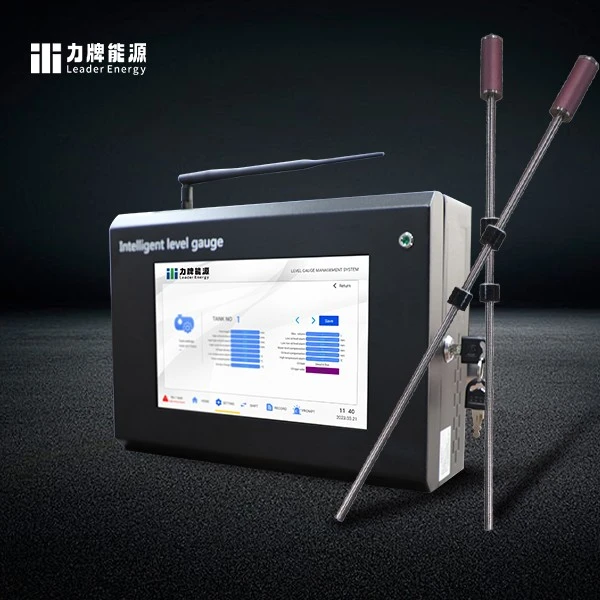

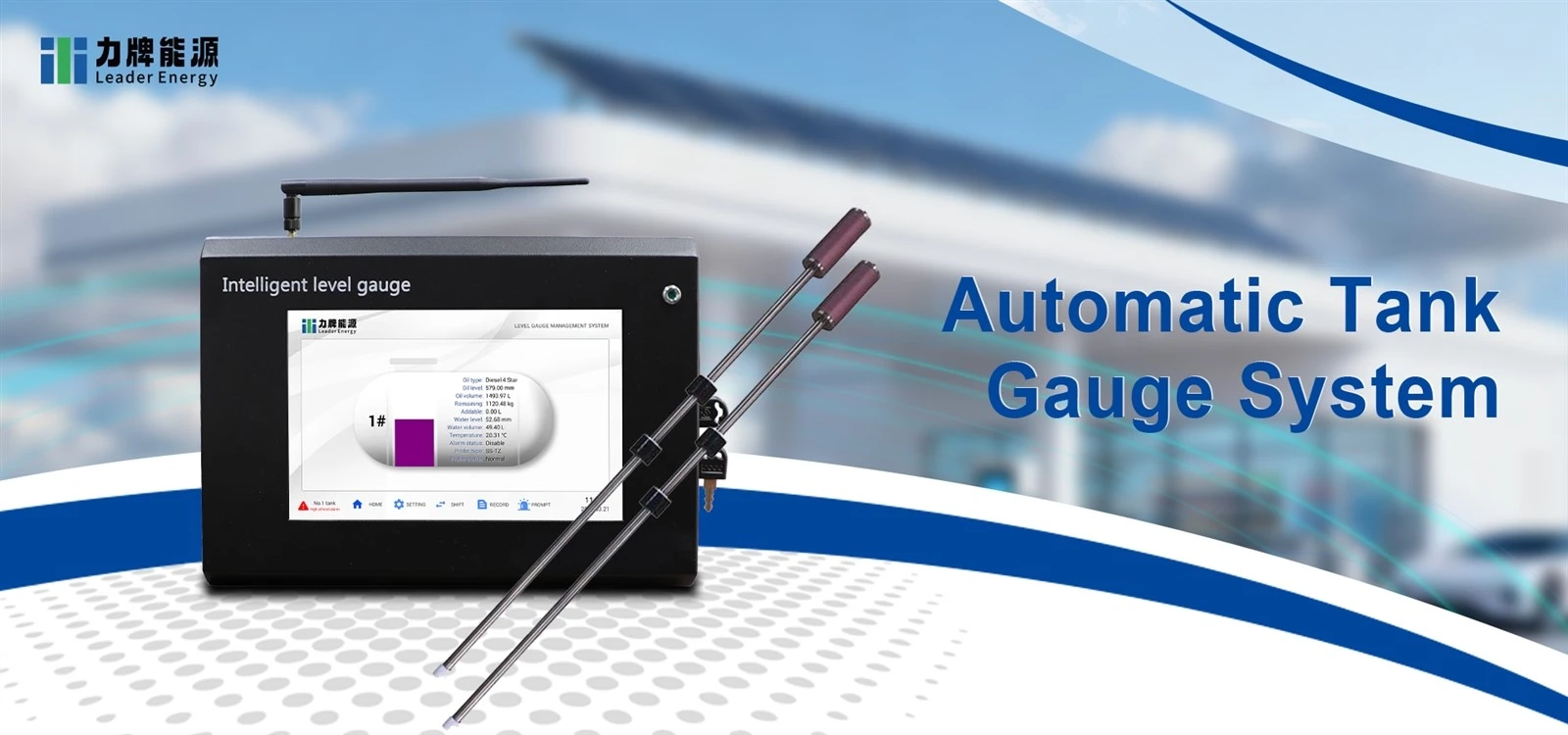

The LEADER ENERGY automatic tank gauge system combines intelligent liquid level meters with magnetic expansion rigid rod probes, providing a high-performance liquid level measurement solution specifically designed for precision and reliability in industrial environments. In terms of accuracy and long-term stability, it outperforms other technology-based sensors and is widely applicable for liquid level monitoring, measurement, and automation control in containers such as tanks, pools, and basins in industries such as oil and gas, chemicals, pharmaceuticals, and food.

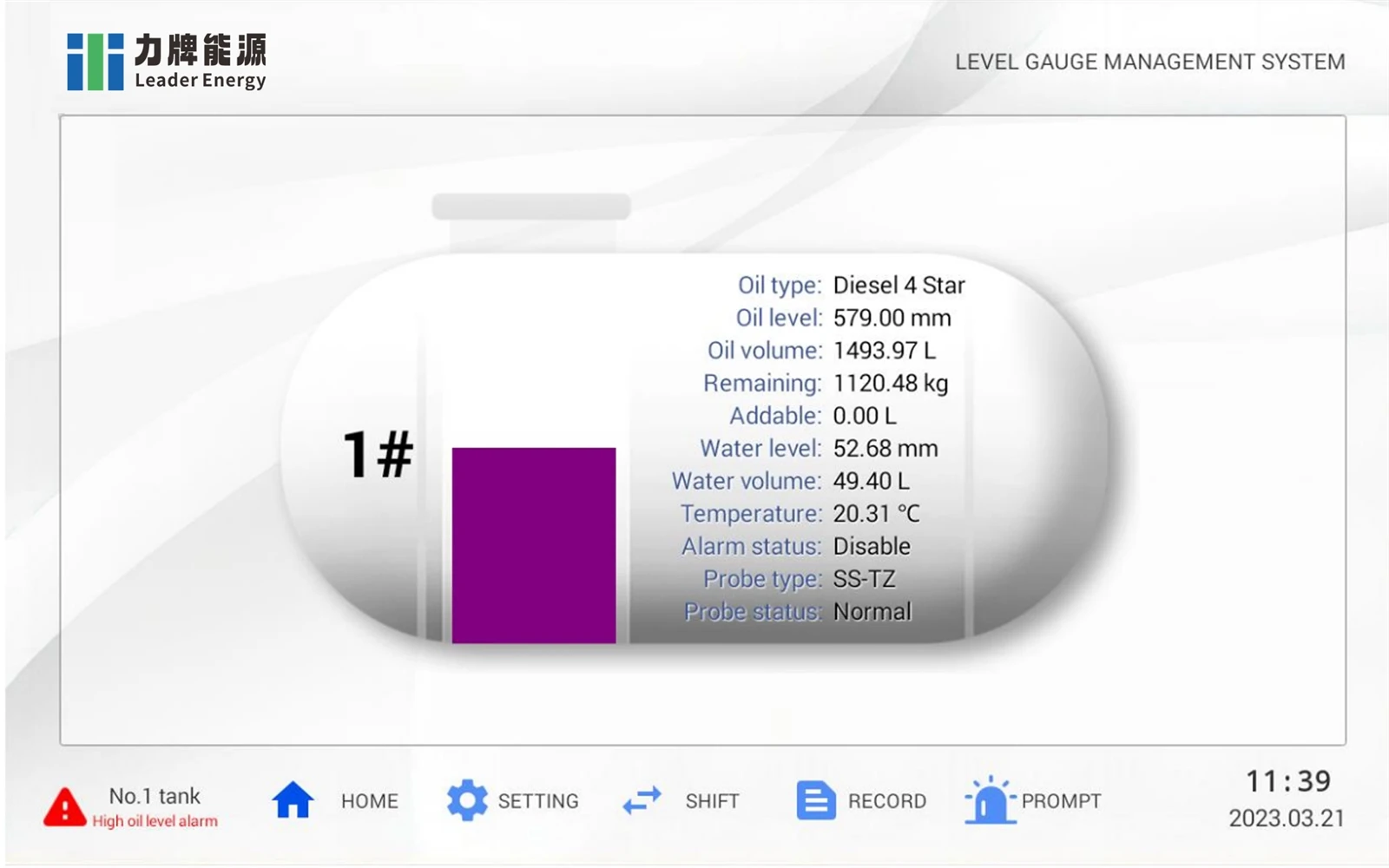

Main Interface

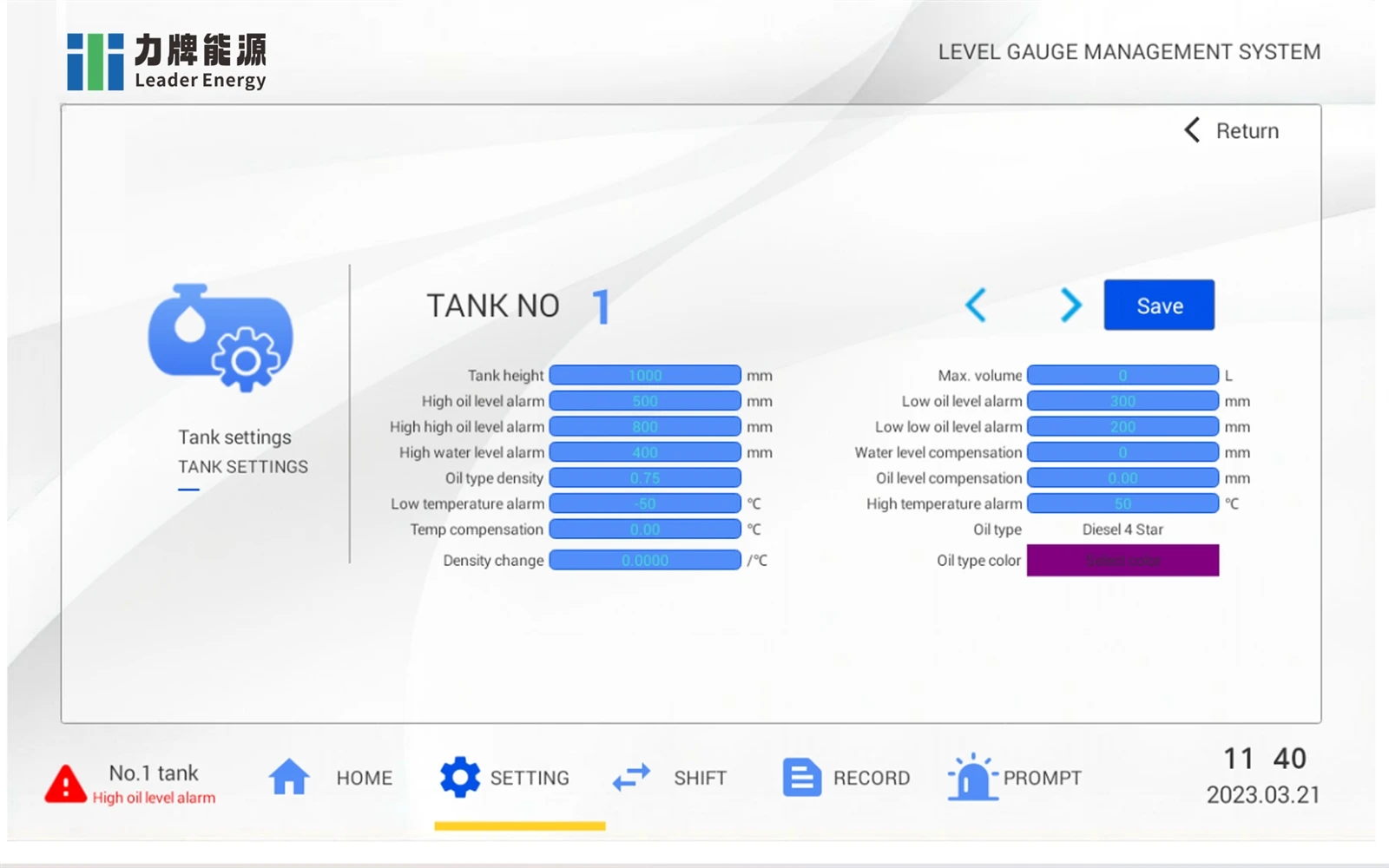

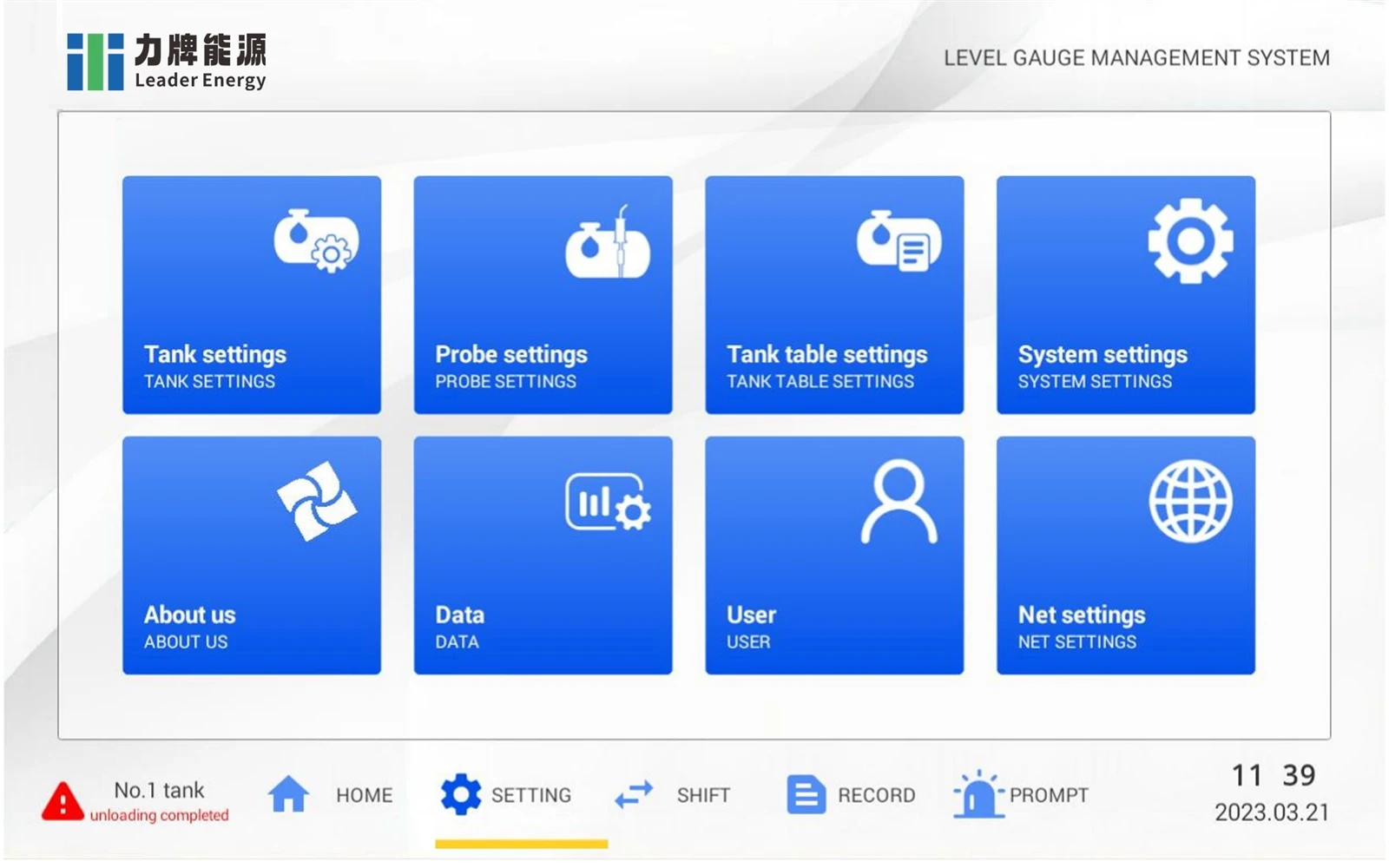

Tank Settings

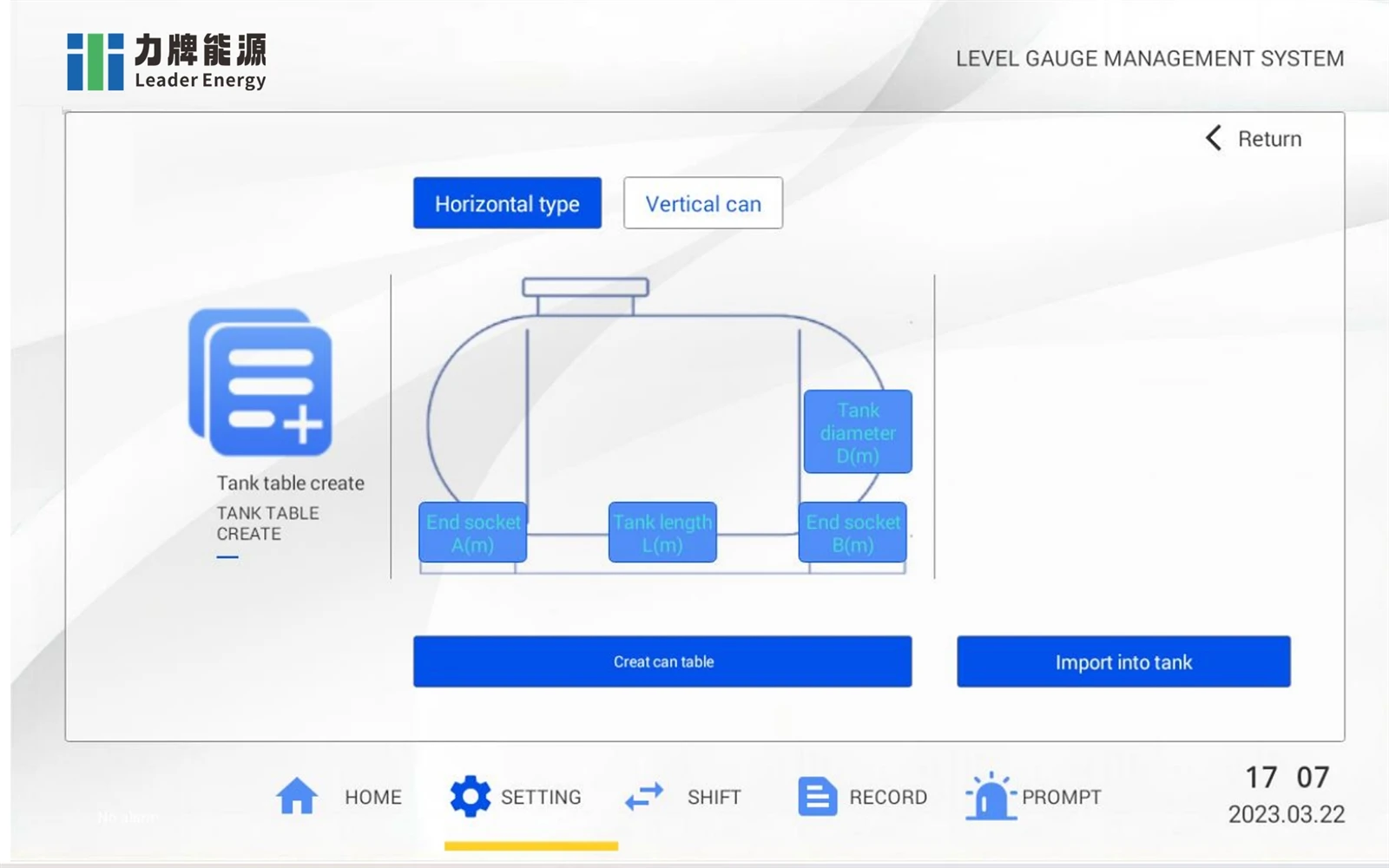

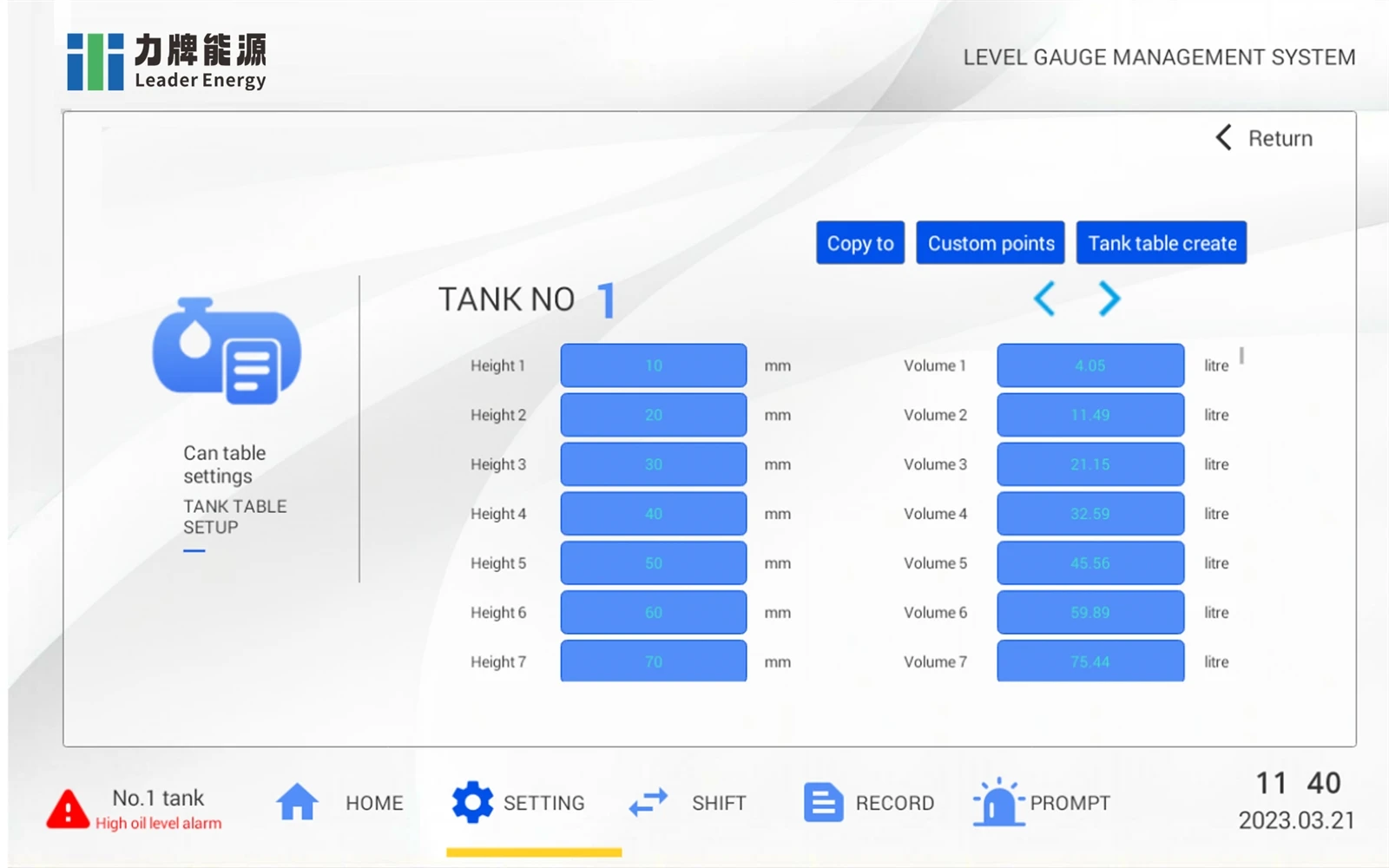

Tank Table Generation
Probe Settings
Advantages And Features
Easy to operate and highly scalable:

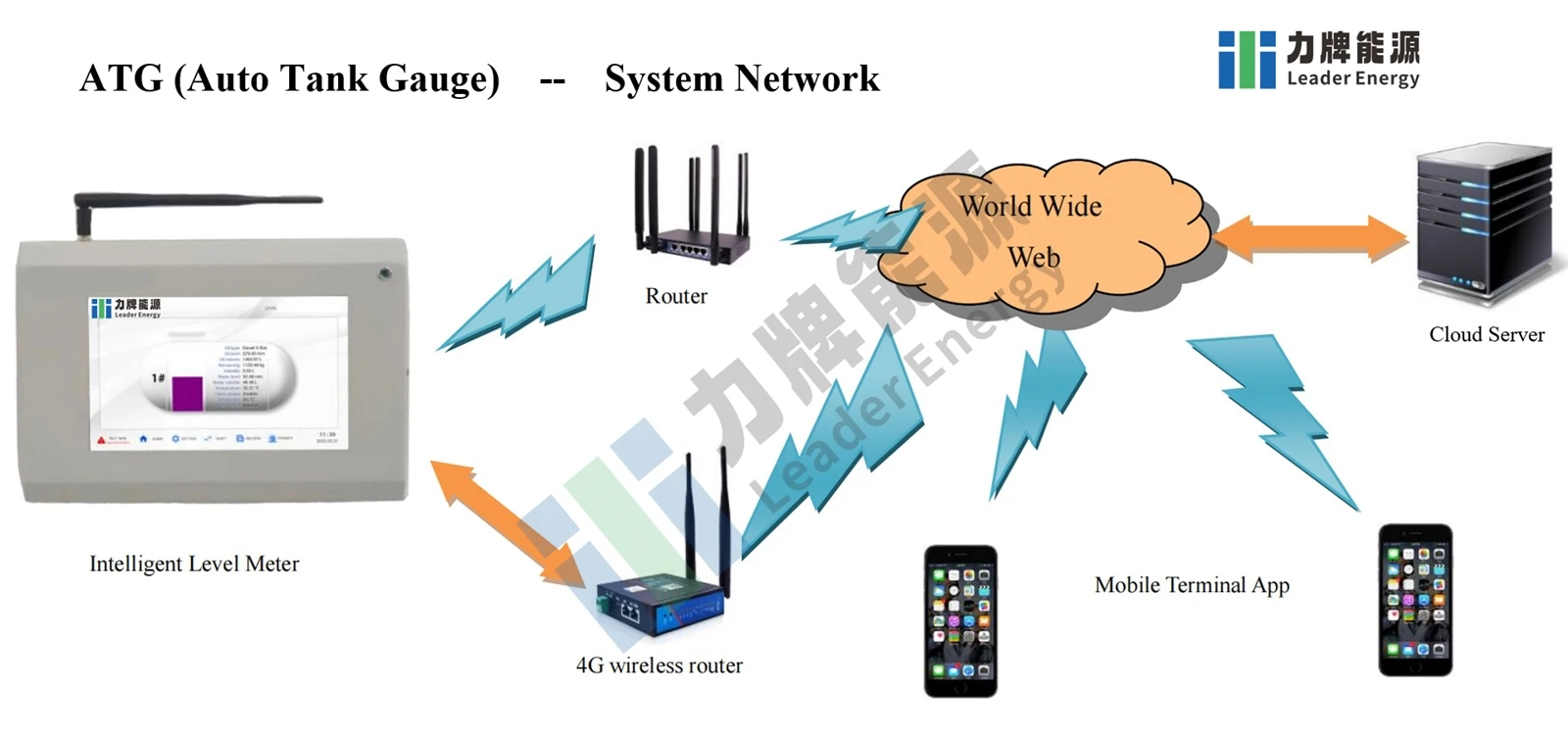

Equipped with an Android system and a color capacitive touchscreen, it enables intuitive human-computer interaction and supports mobile remote monitoring. Standard with RS232/RS485 interfaces, it supports external audible and visual alarms and can be flexibly connected to external alarms, printers, and overflow valve modules to meet various industrial application needs.
High precision and high reliability:
The magnetic expansion rigid rod probe adopts advanced technology, measuring the time difference of torsional stress waves to calculate the position of the magnetic float, thereby achieving high-precision liquid level measurement. Its long-term stability is superior to traditional sensors. Built-in anti-interference components (surge protectors, TVS diodes) ensure the stable operation of the automatic fuel tank measurement system in harsh industrial environments.
Durable and low maintenance cost:
Adopting high-quality components and industrial grade protective design, with a long service life. The probe has a compact structure, easy installation, simple operation of the entire ATG system, low maintenance costs, and reduces long-term use losses.
Pump Parameter
- Measuring range: 500mm～6000mm
- Output mode: RS-485 Maximum communication distance 1200 m
- Power supply: 24VDC
- Product power consumption: ≤ 60mA
- Operating temperature: -30℃～+60℃
- Measurement accuracy: ±0.5mm.
- Repeat accuracy: ±0.2mm
- Oil level resolution: 0.01mm
- Water level resolution: 0.01mm
- Temperature measurement points: 5
- Temperature sensor resolution: 0.0625°C
- Upper blind spot: 60mm
- Lower blind spot: 50mm
- Explosion-proof mark: Ex ia IIAT5 Ga
- Associated equipment: Zener type safety barrier
- Suitable media: Gasoline, paraffin, diesel, light oil, heavy oil, methanol, toluene, ethanol, acetic acid, ethyl ester and other liquids.
- Communication address: 2 digits, e.g. 01, 99.
- Protection class: IP67
