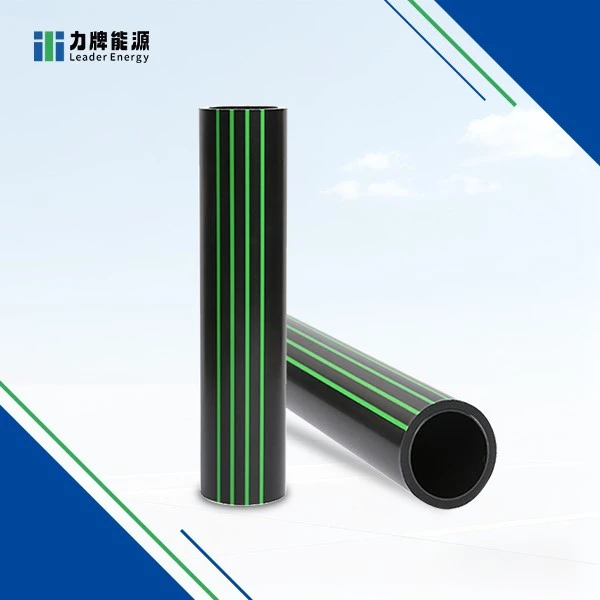

The HDPE gas pipes of LEADER ENERGY are all made from brand-new high-quality polyethylene particles as raw materials. Compared with recycled materials, they perform exceptionally well in terms of corrosion resistance, impact resistance and service life, making them the ideal choice for engineering projects.
Advantages And Features
1. Reliable anti-static performance
This HDPE gas pipe combines a specially designed conductive layer with high-density polyethylene. The overall surface/volume resistance of the pipe is ≤ 10,000 Ω. It can eliminate static electricity during oil flow, prevent explosions, and the entire pipeline is continuously conductive without interruption.
2. Full Specification Customization
We not only offer HDPE gas pipe with an outer diameter typically ranging from 32/63/90/110mm, but also offer options for coil and straight pipes. The coils are usually available in lengths of 30m, 50m, and 100m per coil, as well as fixed-length straight pipes of 6/9/12m and other different-sized fittings such as elbows, tees, etc.
Products Description
|
Conductive Secondary Contained Pipes |
||||
|
Model |
Highlights |
Diameter (mm) |
Length (m) |
Package |
|
65/54 |
Conductive pipes with permeation barrier and secondary containment |
65/54 |
100m coil, 6m stick |
PP winding |
|
75/63 |
Conductive pipes with permeation barrier and secondary containment |
75/63 |
100m coil, 6m stick |
PP winding |
|
125/110 |
Conductive pipes with permeation barrier and secondary containment |
125/110 |
6m stick |
PP winding |
|
|
Termination Fitting with/without Test Port | ||||
| Model | Description | Diameter (mm) | Weight | Package | |
| 65/54D | With Test Port | 65/54 | 0.21 | Poly bag in carton | |
| 75/63D | With Test Port | 75/63 | 0.16 | Poly bag in carton | |
| 125/110D | With Test Port | 125/110 | 0.58 | Poly bag in carton | |
| 65/54W | Without Test Port | 65/54 | 0.18 | Poly bag in carton | |
| 75/63W | Without Test Port | 75/63 | 0.13 | Poly bag in carton | |
| 125/110W | Without Test Port | 125/110 | 0.54 | Poly bag in carton | |
Installation Instance
HDPE GAS pipelines are typically used in natural gas transportation and fuel delivery applications, offering convenient installation and high safety.
Delivery and Package
Due to their large length and size, Leader Energy's HDPE GAS pipelines are typically transported by sea, but we will also select the appropriate transportation method according to the customer's needs.
Certificate
