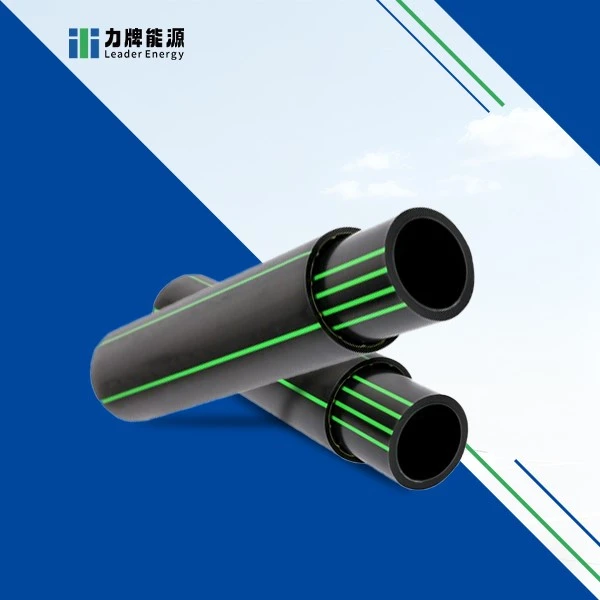

HDPE Pipeline

HDPE Pipeline

Details
Greater Flexibility
Non-Corrosive
Low Maintenance
Category
Underground Pipeline
Share to
Send Inquiry
Description
Technical Parameters

HDPE Pipeline 1



LEADER ENERGY HDPE pipelines are made of PE100 grade high-density polyethylene and have an anti-seepage layer and anti-static layer inside. They are more suitable for oil pipelines, ventilation pipes, and oil vapor recovery pipelines. This type of pipe uses capacitance welding technology during welding, which can fuse pipes, fittings, and sleeves into a seamless system and prevent fuel leakage and other situations.
Advantages and features



Advantages And Features

1. Better flexibility

Compared with steel pipes and FRP pipes, HDPE pipelines have better flexibility. The tensile strength is ≥ 30 MPa. They are less likely to deform or break when encountering slight seismic activities and other pressures. HDPE pipes are more suitable for areas with complex geological conditions.



2. Anti-seepage and barrier

These HDPE pipelines have a gasoline/ethanol permeability rate of < 0.01 g/(㎡·d), which can effectively prevent oil and gas pollution of groundwater and is compatible with different types of fuel.

Products Description



Conductive Secondary Contained Pipes

Model

Highlights

Diameter (mm)

Length (m)

Package

65/54

Conductive pipes with permeation barrier and secondary containment

65/54

100m coil,

6m stick

PP winding

75/63

Conductive pipes with permeation barrier and secondary containment

75/63

100m coil,

6m stick

PP winding

125/110

Conductive pipes with permeation barrier and secondary containment

125/110

6m stick

PP winding

Conductive Primary Pipes

Model

Highlights

Diameter (mm)

Length (m)

Package

54

Conductive pipes with permeation barrier

54

100m coil,

6m stick

PP winding

63

Conductive pipes with permeation barrier

63

100m coil,

6m stick

PP winding

90

Conductive pipes with permeation barrier

90

6m stick

PP winding

110

Conductive pipes with permeation barrier

110

6m stick

PP winding



Conductive Electrofusion Elbow Fitting for Secondary Containment Pipes 1_副本

Conductive Electrofusion 45°/90°Elbow Fitting for Secondary Containment Pipes
Model Description Diameter (mm) Weight Package
75/63-90D Conductive and electrofusion 75/63 0.7 Poly bag in carton
125/110-45D Conductive and electrofusion 125/110 2 Poly bag in carton
125/110-90D Conductive and electrofusion 125/110 2.8 Poly bag in carton



Conductive Electrofusion Elbow Fitting for Primary Pipes 1

Conductive Electrofusion 45°/90°Elbow Fitting for Primary Pipes
Model Description Diameter (mm) Weight Package
63-90D Conductive and electrofusion 63 0.35 Poly bag in carton
90-45D Conductive and electrofusion 90 0.6 Poly bag in carton
90-90D Conductive and electrofusion 90 0.75 Poly bag in carton
110-45D Conductive and electrofusion 110 1 Poly bag in carton
110-90D Conductive and electrofusion 110 1.45 Poly bag in carton

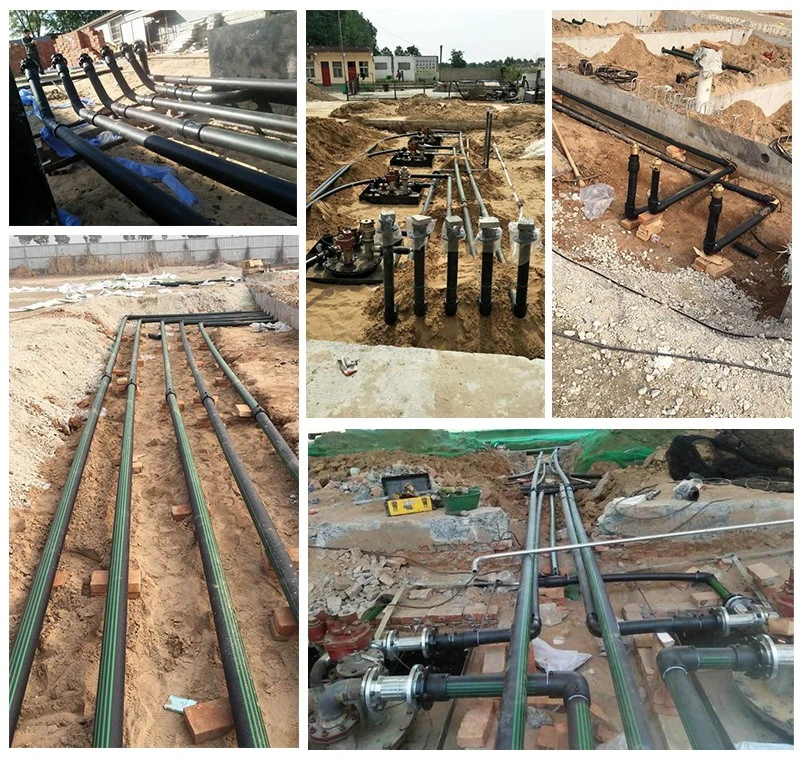

Installation Instance



HDPE pipeline are commonly used in scenarios such as fuel transportation and water supply, and our HDPE pipeline have been sold to over 60 countries worldwide.

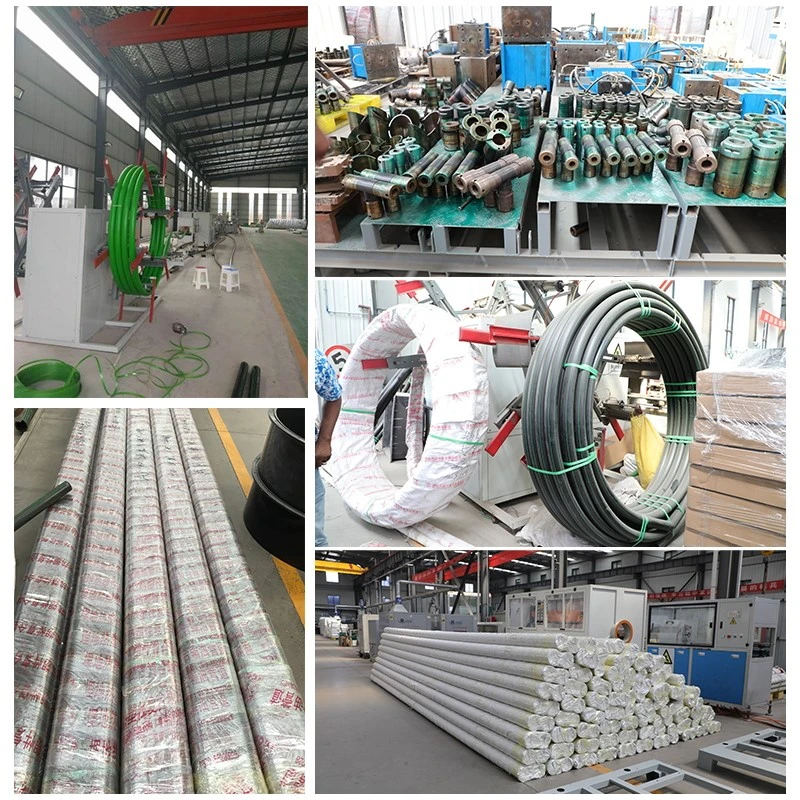

Factory Display

Installation Instance



Delivery and Package



We support multiple transportation methods, including air and sea freight, to ensure that products are delivered intact.



Certificate

We ensure operational safety with explosion-proof certification, protect your revenue with measurement accuracy, and uphold international quality with ISO & CE. This is our promise, certified.

Leader Energy Certificate
